Elgiloy Alloy

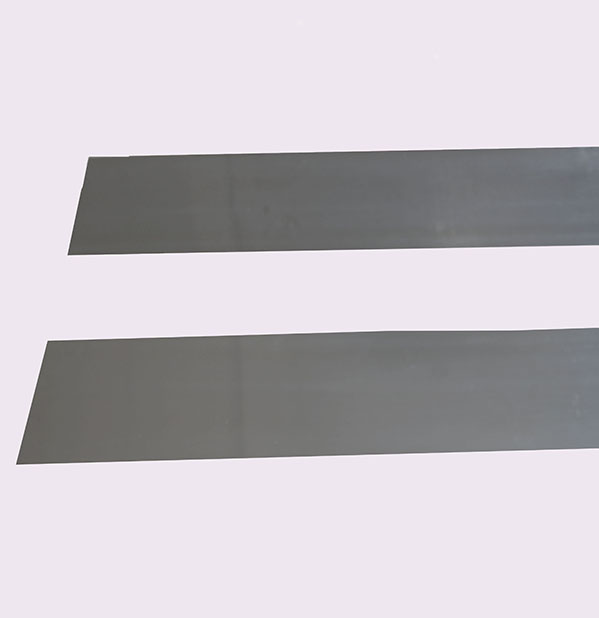

Forms: Sheet/Plate, Bar/Rod/Wire/Coil
Description
This Cobalt-Chromium-Nickel alloy gives a combination of high strength, ductility and good mechanical properties and is age hardenable. Elgiloy also has excellent fatigue life, corrosion resistance in numerous environments and is non-magnetic. It has high corrosion resistance and low relaxation stress at the height of 600℉.
Application
Springs ,Seal components, Medical devices, Components for watches, Aerospace applications, Petro-chemical applications, Marine engineering.
parameter
Cross Reference
| Russia | USA | Japan | France | Standard |
| 40KHXM | Elgiloy | NAS604PH/K.R.N | Phynox | YB/T5253-1993 |
Chemical Composition (%)
| Si | P | S | C | Mn | Ni | Cr | Co | Mo | Fe |
|
≤ |
|||||||||
| 0.60 | 0.010 | 0.010 | 0.07-0.12 | 1.70-2.3 | 14.0-21.0 | 19.0-21.0 | 39.0-41.0 | 6.50-7.50 | Balance |
Physical Property
| Item | Target |
| Modulus of Elasticity E/Mpa | 196000～215500 |
| Shear Modulus G/Mpa | 73500～83500 |
| Density (g/cm3) | 8.4 |
| Mean coefficient of linear expansion20-100°C/(10-6/K) | 14 |
| Resistivity ρ /(μΩ•m) | 0.92 |
| Magnetic Rate k/106 | 50～1000 |
Mechnical Property
| shape | Delivery state | Thickness&diameter | Tensile strength(ób/Mpa) | Elongation δ(%)≥ |
| sheet | Cold rolling | 0.20-2.50 | 1175～1470 | 5 |
| 1470～1765 | 3 | |||
| wire | Cold drawn | 0.20-5.00 | 1275～1570 | |
| 1570～1865 |
|
Size Range
| Sheet | Thickness: 0.10mm~2.50mm, width:10.0~210mm |
| Plate | Thickness: 2.5mm~40.0mm,width:≤500mm |
| Round Wire | Dia 0.1mm~Dia 7.0mm |
| Flat Wire | Dia 0.5mm~Dia 7.0mm,length:≤1000mm |
| Bar | Dia 7.0mm~Dia 10.0mm,length:≤2000mm |
Condition: (With max tolerance) hot rolled, cold rolled, cold drawn,bright
