Soft magnetic Iron Cobalt alloy ASTM A801 R30005 Co49 V2 Fe49

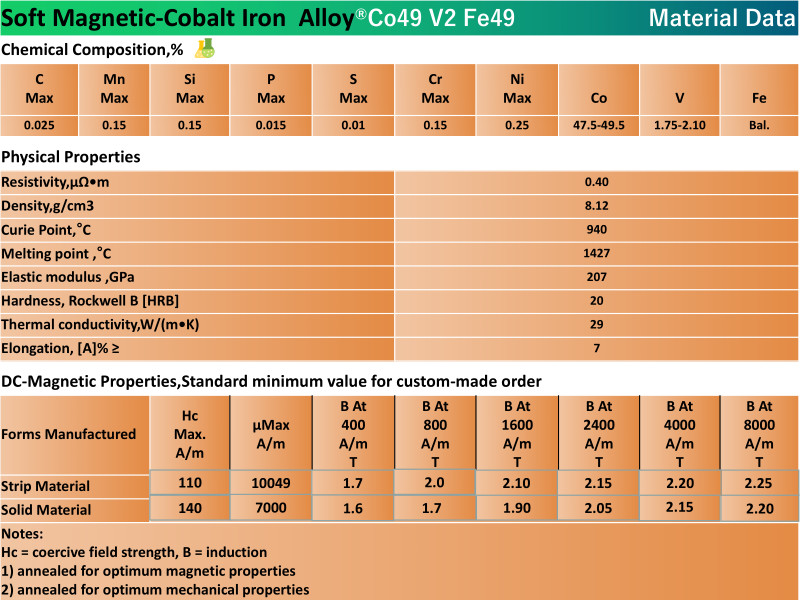

Soft Magnetic -Cobalt Iron Alloy Co49 V2 Fe49
|
Co49 V2 Fe49 ，Equivalent to Carpenter Hiperco 50，Vacoflux 50， is a high-saturation magnetic induction strength iron-cobalt-vanadium soft magnetic alloy. In the existing soft magnetic materials, the alloy has the highest saturation magnetic induction (2.4T) and a high Curie point (940℃). Due to the high saturation magnetic induction, when manufacturing a motor of the same power, the volume can be greatly reduced,and the weight can be reduced, which is less than 50% of that of an ordinary motor. Moreover, the motor has high sensitivity, low heat generation, good stability and long life. Due to the high Curie point, the alloy can be operated at higher temperatures where other soft magnetic alloy materials have been completely demagnetized and maintain good magnetic stability. The performance stability of the motor is better than that of the permanent magnet motor at higher operating temperatures. The alloy is melted using Vacuum Induction Melting (VIM) techniques. Standard Specification :ASTM A801-14 Alloy 1 |

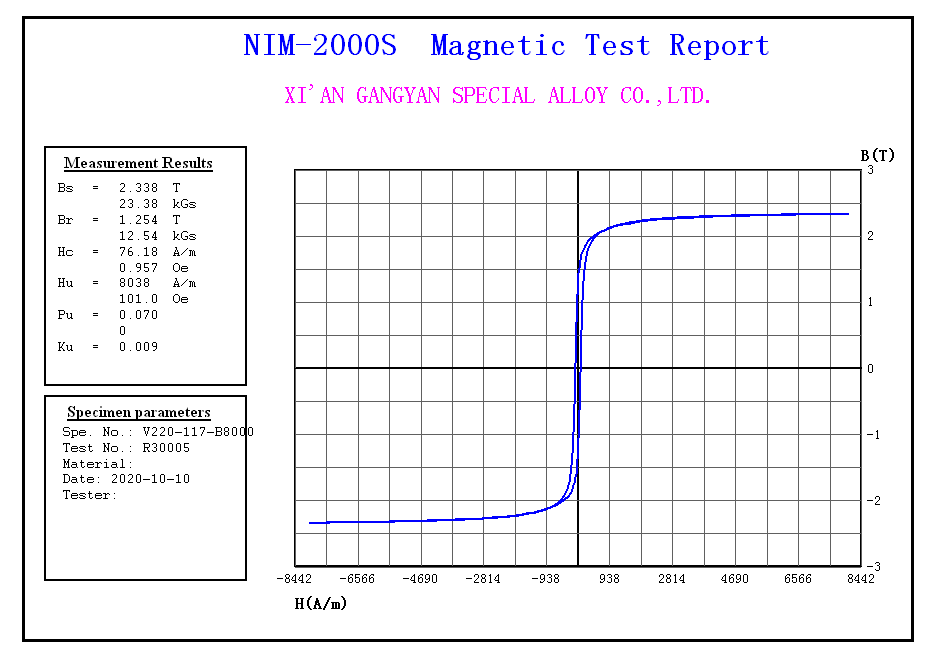

B-H Loop
Magnetic field Measured at B8000(A/m),Coercive field strength ,Hc=76.18(A/m) .Soild Material Dia.32mm

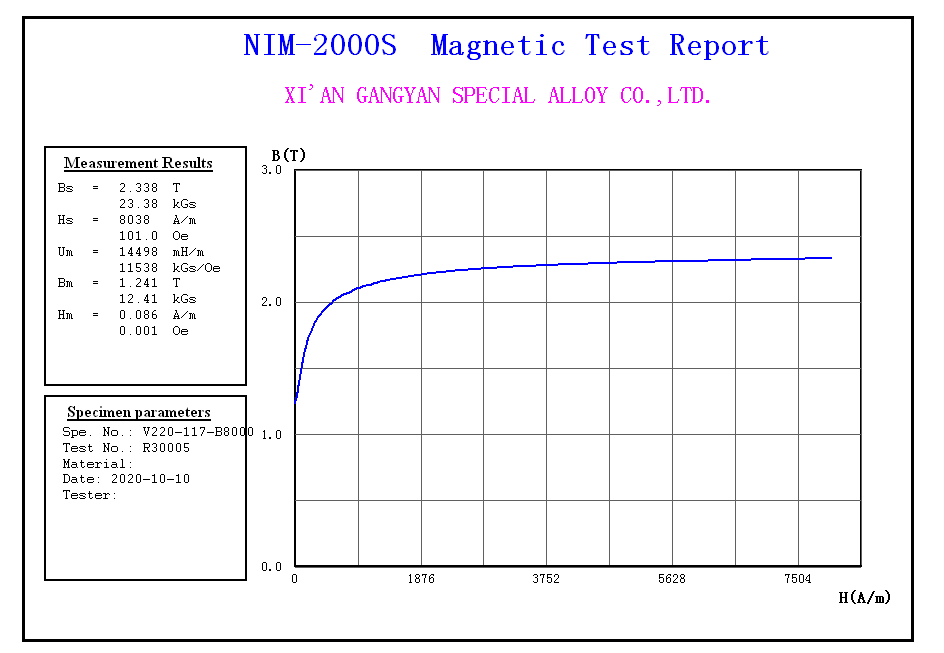

Magnetization curve

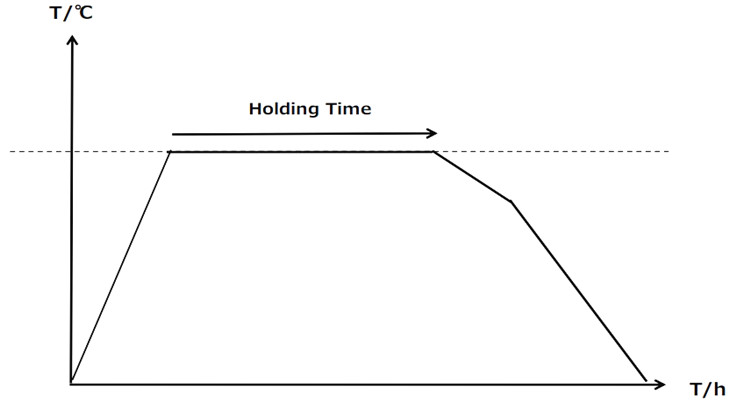

Further Processing-(Magnetic Final Annealing)
1) annealed for optimum magnetic properties
2) annealed for optimum mechanical properties
Application

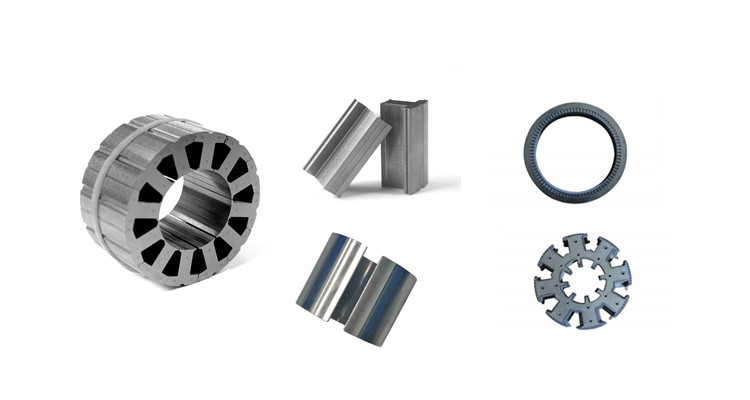

Examples of parts made from Co49 V2 Fe49, Turned components for actuators. stamped lamination assemblies for motors and generators.

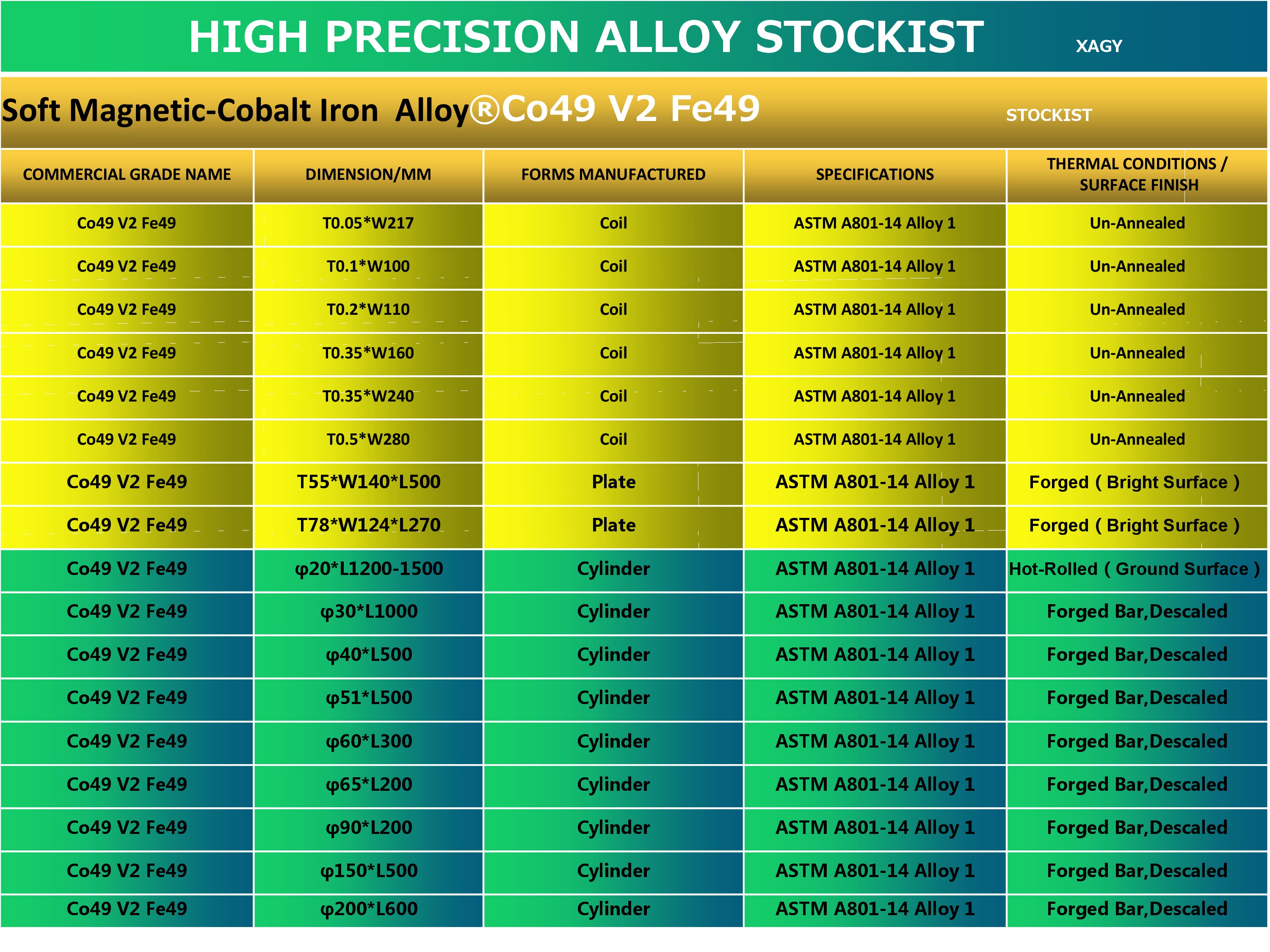

If you would not find suitable dimension from stockist.Please send a quote to Email: supportsales@xagy.cn OR call us at +86 29 3366 9103 for custom-made solution！
