Alloy 46

Description

Consisting of 46% nickel and iron balance, 46 Alloy is a controlled expansion alloy used mostly in electronic applications, especially for glass and ceramic seals. Alloy 46 is also known as Premier 462, NILO 464, and Glass-Seal 461.

Application

Glass to metal seals for electronic tubes and hermetic devices.

parameter

Cross Reference:

Russia	USA	France
46	Fe-Ni alloy46	N46

Typical chemistry:

C	P	S	Mn	Si	Ni	Co	Cu	Fe
≤					Ni	Co	Cu	Fe
0.05	0.020	0.020	0.40	0.30	37.0-38.0	5.0-6.0	3.0-4.0	BAL.

Physical property:

Heat treatment of samples	Average coefficient of linear expansion
Heat treatment of samples	20～300°C	20～400°C	20～500°C
Heat to 850～900°C in a protective atmosphere or invacuum condition, hold for 1 hour, and then cool to 300℃ at a rate less than 300℃/h	5.5-6.5	5.6-6.6	7.0-8.0

Average coefficient of linear expansion in different temperature, ā/(10^-6/K)

20-100°C	20-200°C	20-300°C	20-400°C	20-500°C	20-600°C
6.8	6.5	6.4	6.4	7.9	9.3

Typical Mechanical property :

Heat treatment,℃	Tensile strength sb/MPa	Tesile stretch δ(%)	Vickers hardness	Grain size
750	527.5	34.8	137.4	7
850	510	35.4	134.6	6
950	483.5	36.7	128.1	6—5
1050	466.5	34.3	125.6	5--4

Typical Magnetic Property:

Magnetic induction	B10/T	1.58
	Bl00/T	1.61
Remanent magnetic induction/ Br/T		0.31
Coercivity		2.96
Maxmum perameability		55.5

Typical Property:

Modulus of elasticity	137500
Resistivity	0.54
Thermal conductivity200℃/[W/(m•K)]	20.1
Density/(g/cm3)	8.18

Size Range

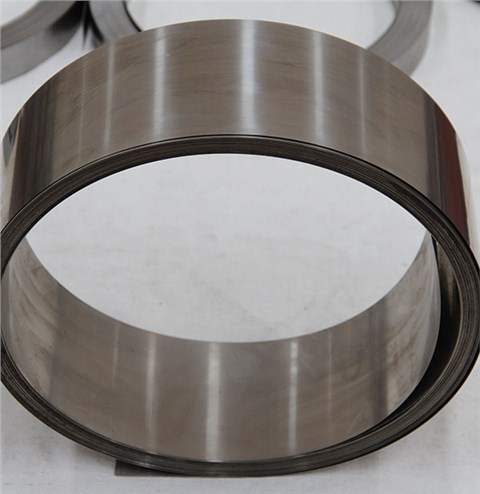

Sheet	Thickness:0.10mm~3.50mm, width: ≤300mm
Plate	Thickness:3.5mm~40.0mm, width: ≤500mm

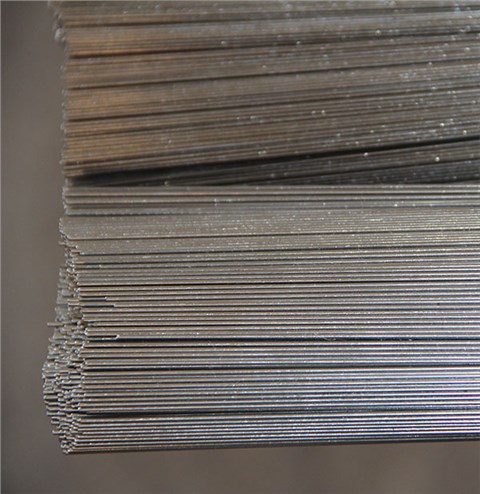

Round wire	Thickness:0.10mm~5.0mm
Flat Wire	Dia 0.5mm~Dia 5.0mm, length≤1000

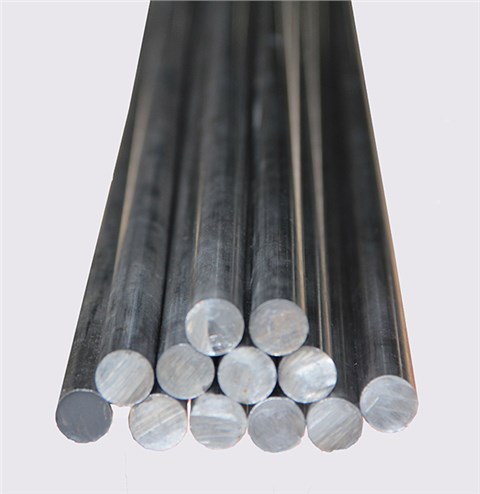

Rod	Dia 5.0mm~Dia 8.0mm, length≤2000
	Dia 8.0mm~Dia 32.0mm, length≤2500
	Dia 32.0mm~Dia180.0mm, length≤1000
Capillary	OD 8.0mm~1.0mm,ID 0.1~8.0 length≤2500
Pipe	OD 120mm~8.0mm,ID 8.0~129 length≤4000
