HiperCo27 alloy is an iron-cobalt-chromium soft magnetic alloy possessing the highest degree of ductility and toughness in the commercially available iron-cobalt grades of high saturation and high Curie temperature soft magnetic alloys. Although the permeability and coercive force of HiperCo 50 alloy are somewhat better than HiperCo 27 alloy, the magnetic saturation of both alloys is nearly identical. In addition, HiperCo 27 alloy does not exhibit the brittleness of HiperCo 50 alloy.

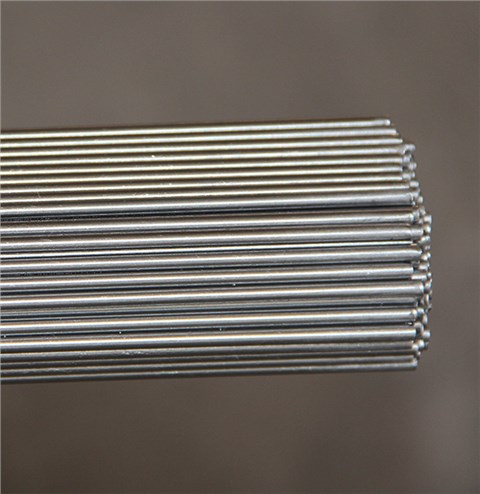

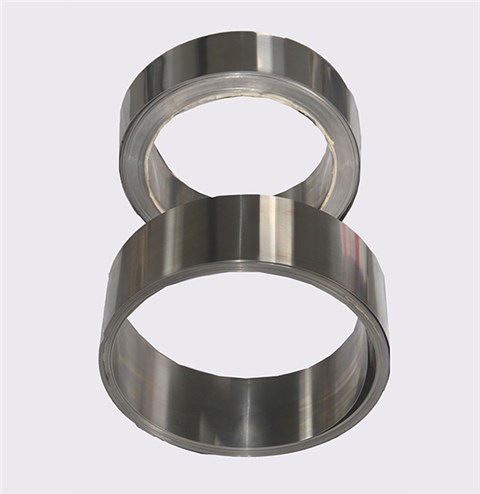

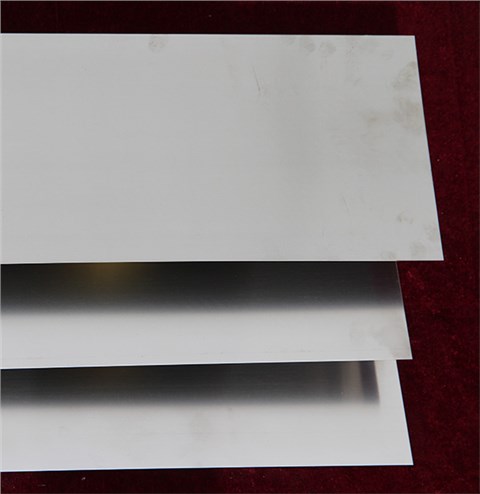

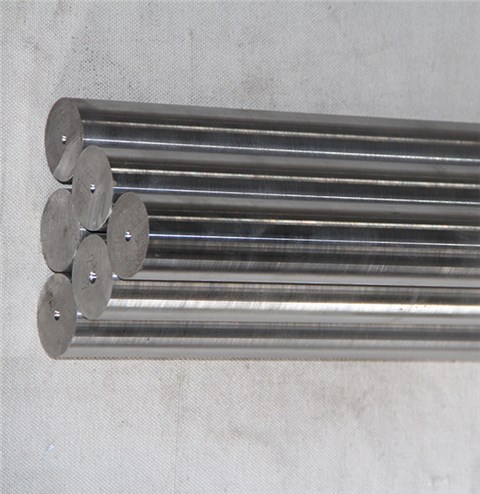

Forms: Sheet/Plate, Bar/Rod/Coil

Description

HiperCo27 alloy is an iron-cobalt-chromium soft magnetic alloy possessing the highest degree of ductility and toughness in the commercially available iron-cobalt grades of high saturation and high Curie temperature soft magnetic alloys. Although the permeability and coercive force of HiperCo 50 alloy are somewhat better than HiperCo 27 alloy, the magnetic saturation of both alloys is nearly identical. In addition, HiperCo 27 alloy does not exhibit the brittleness of HiperCo 50 alloy.

Application

HiperCo27 alloy has been used in applications requiring a combination of good mechanical toughness, good ductility and high saturation induction. Examples have included motors, generators, pole pieces, relays and magnetic shaft.

parameter

Chemical Composition (%)

C	P	S	Si	Mn	Ni	Cr	V	Co	Fe
≤
0.025	0.015	0.015	0.35	0.35	0.75	0.75	0.35	26.5~28.5	Balance

Physical Property

Density/ g/cm3	7.95
Resistivity/(μΩ•m)	1.9
Curie Point/℃	925
Tensile Strength/MPa	1150
Yield Strength/MPa	1140

Magnetic Property

Saturation induction Bs/T	2.4
Coercive force Hc/A·m-1	140
Remanence Br/T	0.85
Magnetostriction Coefficient/(×10-6)	36

Size Range

Sheet	Thickness: 0.10mm~0.50mm,width10.0~210.0mm
Plate	Thickness: 3.5~40.0mm,width≤300mm
Bar	Dia 8.0mm~Dia 32.0mm,length≤2000mm
	Dia 32.0mm~Dia 150.0mm,length:≤1000mm

Condition: (With max tolerance) cold rolled,bright,hot rolled,burnished,hot forging,peeled,turned
